8-45 TON EXCUVATOR

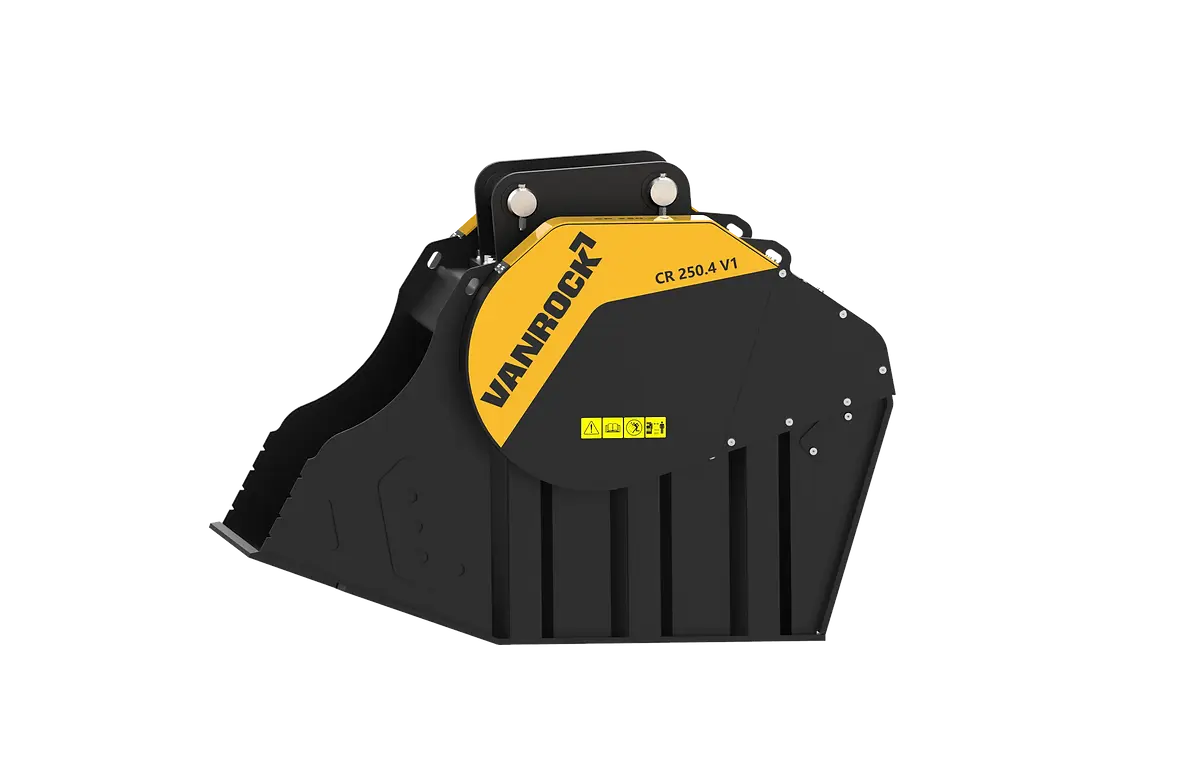

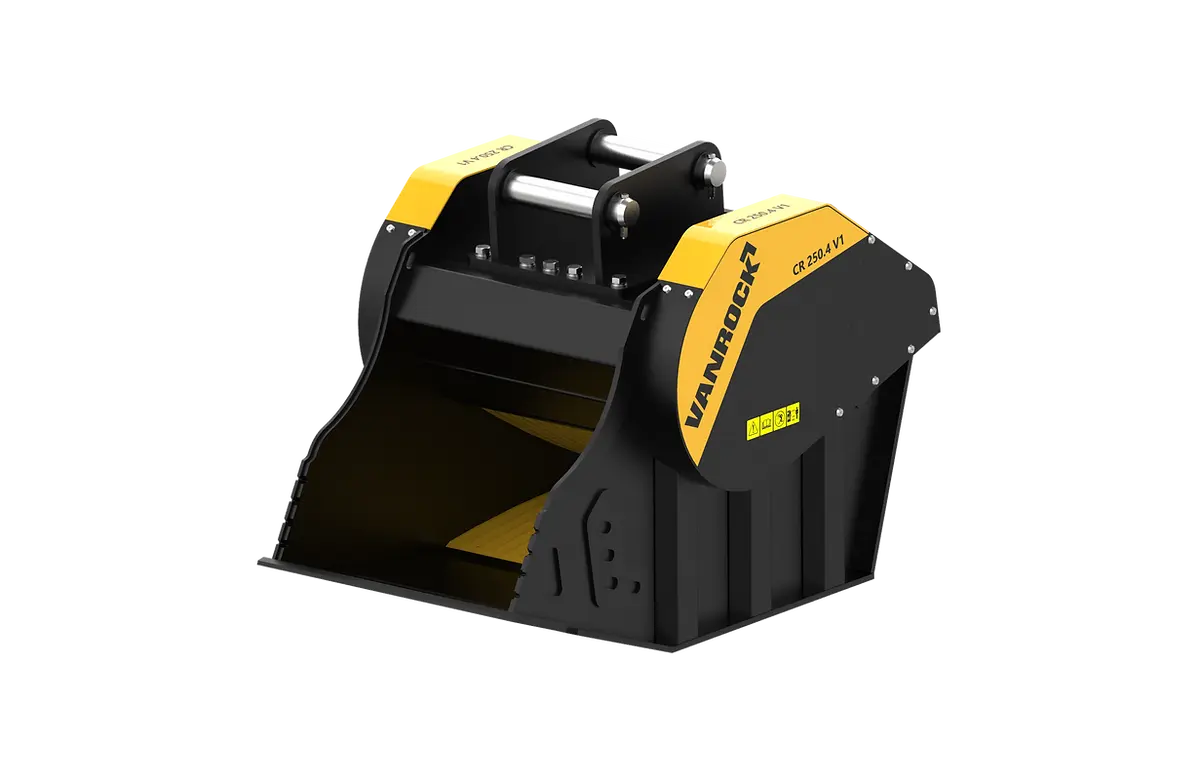

VANROCK CRUSHER BUCKET
Unleash the power of Vanrock Bucket Crushers – the ultimate mobile crushing innovation. With a robust construction and versatile performance, our bucket crusher effortlessly transforms any carrier into real mobile crusher. Compact, portable, and driven by advanced hydraulic technology, it maximizes productivity while minimizing operating costs.
Full HARDOX 450 Body
Built to handle strain and resist abrasive wear
Reverse Crushing Function
Remove blockages when crushing
Exchangable Jaw Plates/Side Wear Plates
Increase life of equipment
Dust Suppression System (Standard)
Attached water spray system for dust suppression
APPLICATION SECTORS
Recycling
Road Work
Pipeline & Trenches
Forestry
Tunnels
Urban
WHY VANROCK BUCKET CRUSHER?
Vanrock Bucket Crusher is the ultimate crushing attachment for excavators. Check the drop down for comprehensive feature details.
We utilize HARDOX 450 for all wear parts, ensuring guaranteed quality and exceptional abrasion resistance in our Crusher Bucket. Vanrock distinguishes itself as one of the few companies incorporating Hardox into its crushers, prioritizing durability and performance."
The distinctive up-thrust position of the toggle plate generates the renowned QUATTRO jaw movement that sets VANROCK apart. This unique design ensures that the swing jaw does not move parallel to the material flow, as in conventional crushers. Instead, it follows a highly effective figure-8 motion. This geometry allows for a pre-crush in the upper part and a post-crush in the lower part of the crusher chamber, accommodating larger infeed material. As a result, the material is actively drawn in and downwards, maximizing throughput.
The Bucket Crusher's reversible running direction capability offers much needed resistance to blockages, minimizing downtime for your attachment.
Vanrock features replaceable jaw plates to significantly extend the bucket crusher's life. Replacing the jaws is a breeze; simply remove the lock bolts and lock the new jaw in place.
Vanrock incorporates replaceable side plates to greatly prolong the lifespan of the bucket crusher, a feature unique to our design.
Each model accommodates two specifications of Jaw Plates: standard and fine. This versatility enables our Crusher Bucket to address a wider range of applications than ever before.
The operating output is adjustable, ranging from 12mm to 120mm particles, and can be transitioned from the lowest to the highest setting in under 10 minutes.
We are committed to environmental protection, which is why the Dust Suppression System is standard on all Vanrock Bucket crushers. Simply connect a water pipe to the crusher, and the system is ready for use.
To assist in tracking operational metrics such as active hours and crushed material volume, all our models come equipped with an hour meter. This feature records the duration of crusher operation, also facilitating efficient maintenance planning.
Vanrock offers the provision to install an optional magnet on the body, facilitating easy separation of metals from stone.
CRUSHER BUCKET FAQ
A "crusher bucket" is an attachment for excavators or loaders designed to crush and recycle materials directly on-site. Commonly used in construction, mining, and demolition, it breaks down concrete, asphalt, and other tough materials into smaller fragments. This process helps minimize waste, eliminates transportation costs, and facilitates the reuse of materials at the site.
Our bucket crusher is uniquely manufactured using HARDOX 450 steel, known for its exceptional hardness, toughness, and reliability. This robust material ensures durability and performance in demanding applications.
Unlike other models, our crusher buckets feature a reverse crushing function, allowing jammed material to be ejected with the simple flick of a switch, eliminating the need to pound the machine. Additionally, the Quattro jaw movement, characteristic of Vanrock, ensures high throughput and produces a more uniform, cube-shaped end product, reducing flakes and fines while minimizing wear on the jaw plates.
Furthermore, our bucket crusher is the only one on the market that includes a dust suppression system as a standard feature
Vanrock’s Bucket Crusher efficiently crushes concrete, asphalt, bricks, and rocks like granite, limestone etc. Its versatile design is ideal for recycling and processing various hard materials on-site.
-
On-Site Processing: It allows for immediate crushing and recycling of materials like concrete and asphalt directly at the job site, reducing the need for transportation and off-site processing.
-
Time Savings: By eliminating the need to haul away and process materials elsewhere, it speeds up the project timeline, allowing for quicker reuse or disposal of materials.
-
Cost Reduction: It lowers overall project costs by minimizing transport fees and reducing labor needed for material handling and processing.
-
Accessibility: It enables crushing in hard-to-reach or inaccessible areas where traditional processing equipment cannot operate, increasing flexibility and efficiency on challenging sites.
-
Indeed, our Bucket Crushers are remarkably versatile and compatible with a variety of excavator and loader models. It offers a selection of models tailored to fit different carrier sizes, ensuring seamless compatibility and user convenience
Yes, The operating output is adjustable, ranging from 12mm to 120mm particles, and can be transitioned from the lowest to the highest setting in under 10 minutes.
