2.5-70 TON EXCAVATORS

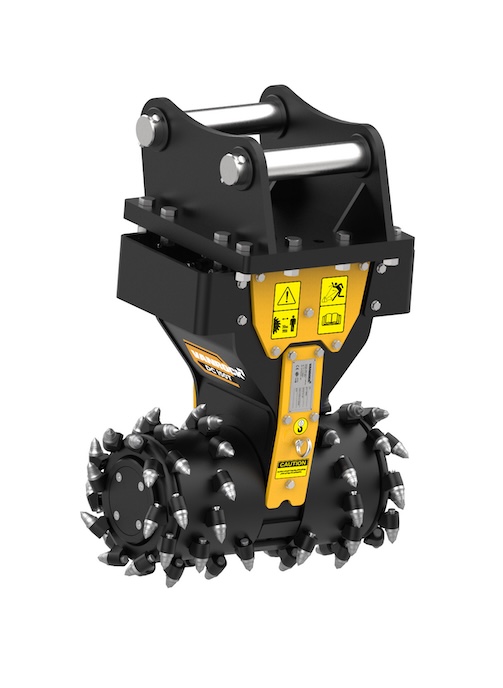

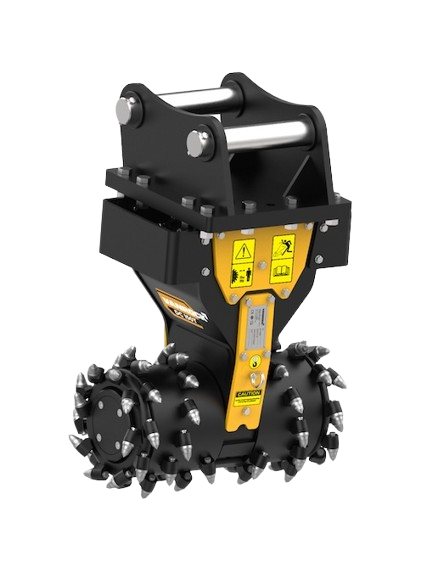

VANROCK DRUM CUTTERS
Vanrock Drum Cutters bring even more control and precision to the operator. This versatile attachment can be used across a vast range of applications. Some include surface profiling, trenching, soft rock and frozen soil demolition, excavation, quarrying and underwater excavations. The Transverse Drum Cutter is an alternative to the Hydraulic Rock Breaker, offering less noise and vibration.
Drum and Pick Kits
Available for all Vanrock models.
Water Resistent
Suitable for underwater work.
Equipped with Wear-Resistant Plates
For the protection of the central body.
360° Rotation Models
Available for better reach.
APPLICATION SECTORS
Recycling
Road Work
Pipeline & Trenches
Forestry
Tunnels
Urban
High Torque Hydraulic Motor
For high productivity.
Optimized Pick Pattern
For less wear and higher productivity.
EXPLORE VANROCK DRUM CUTTERS RANGE
DRUM CUTTER SPECIFICATIONS
Series | Name | Excavator Range | Max Power Output | Max Flow Rate | Recommended Flow Rate | Max Pressure | Output Torque | Output Shaft Speed | Weight | Cutter Bits |
|---|---|---|---|---|---|---|---|---|---|---|
AT SERIES - AXIAL | AT 30 | Mini Excavator 0.7-2.5MT | 25 KW | 85 LPM | 40-70 LPM | 205 bar | 2200 Nm@320bar | 100RPM@50LPM | 210 Kg | 28 Pcs |
AT SERIES - AXIAL | AT 100 | Excavator 8-15MT | 50 KW | 150 LPM | 100-150 LPM | 270 bar | 6500 Nm@320bar | 95RPM@100LPM | 450 Kg | 40 Pcs |
AT SERIES - AXIAL | AT 250R | Excavator 18-30MT | 95 KW | 250 LPM | 120-220 LPM | 320 bar | 14500 Nm@320bar | 95RPM@200LPM | 950 Kg | 50 Pcs |
AT SERIES - AXIAL | AT 350R | Excavator 30-50MT | 250 KW | 375 LPM | 200-350 LPM | 320 bar | 22700 Nm@320bar | 83RPM@375LPM | 1490 Kg | 45 Pcs |
DC SERIES - TRAVERSE | DC 10T | Mini Excavator 0.7-2.5MT | 16 KW | 45 LPM | 20-40 LPM | 315 bar | 1600 Nm@315bar | 100RPM@40LPM | 150 Kg | 44 Pcs |
DC SERIES - TRAVERSE | DC 30T | Excavator 2.5-6MT | 22 KW | 65 LPM | 40-60 LPM | 315 bar | 3800 Nm@315bar | 80RPM@60LPM | 215 Kg | 56 Pcs |
DC SERIES - TRAVERSE | DC 50T | Excavator 5-10MT | 36 KW | 112 LPM | 60-100LPM | 315 bar | 6450 Nm@315bar | 80RPM@100LPM | 380 Kg | 64 Pcs |
DC SERIES - TRAVERSE | DC 100T | Excavator 8-16MT | 50 KW | 150 LPM | 60-140 LPM | 315 bar | 8450 Nm@320bar | 82RPM@140LPM | 720 Kg | 68 Pcs |
DC SERIES - TRAVERSE | DC 150T | Excavator 15-20MT | 80 KW | 250 LPM | 140-220LPM | 315 bar | 14200 Nm@320bar | 78RPM@220LPM | 1380 Kg | 80 Pcs |
DC SERIES - TRAVERSE | DC 250TX | Excavator 18-30MT | 110 KW | 350 LPM | 200-300 LPM | 315 bar | 21150 Nm@320bar | 71RPM@300LPM | 1800 Kg | 64 Pcs |
DC SERIES - TRAVERSE | DC 350TX | Excavator is 30-40MT | 140 KW | 450 LPM | 300-400 LPM | 315 bar | 30300 Nm@320bar | 66RPM@400LPM | 2400 Kg | 72 Pcs |
DC SERIES - TRAVERSE | DC 550TX | Excavator 50-70MT | 175 KW | 550 LPM | 400-500 LPM | 315 bar | 50500 Nm@320bar | 50RPM@500LPM | 5200 Kg | 80 Pcs |
DRX SERIES - 360° ROTATORS | DRX 150 | Excavator 15-20MT | 80 KW | 250 LPM | 140-220 LPM | 315 bar | 14200 Nm@315bar | 78RPM@220LPM | 1570 Kg | 80 Pcs |
DRX SERIES - 360° ROTATORS | DRX 250 | Excavator 20-30MT | 110 KW | 350 LPM | 200-300LPM | 315 bar | 21150 Nm@315bar | 71RPM@300LPM | 2000 Kg | 64 Pcs |
