Auger Drives
Introducing the VANROCK Auger Drive 'AG' series: a dynamic drilling solution powered by the hydraulic systems of excavators or skid steer loaders. Ideal for diverse applications including tree planting, fence piling, landscaping, road signs, pole installations, foundation piles and photovoltaic pile drilling.
AG — Series / 13 Models
Engineered hood and ears
Built to handle strain without breaking or detaching.
High torque hydraulic motor
For high productivity.
Epicycle gearing technology
Motor output torque multiplied with extreme efficiency.
UniShaft
Single-piece locked shaft — no risk of dislodgement.
// The_Series
VANROCK auger drive series
Thirteen models covering carriers from 0.5 to 50 tons — each with epicycle gearing and the single-piece UniShaft.
Filter by product
13 / 13 models
Machine type
Carrier range
0.5–4.5 Ton
Compact auger drives for mini excavators — fast fence, footing and planting holes with minimal hydraulic demand.
VR-AG 1000
Excavator0.5–2 Ton
Skid Steer0.5–2 TonCarrier
0.5–2 Ton
Output torque
1000 Nm
Pressure
150–170 bar
Oil flow
70 LPM
Shaft speed
30–95 RPM
Weight
35 kg
Overall length
550 mm
Hydraulic hose
1/2" BSP
Shaft size
65 mm round
// Engineering
Why VANROCK auger drives are superior
Five engineering decisions behind the AG series.
Crafted from high-grade materials and precision-engineered components, ensuring durability in extreme conditions. It features high-grade synthetic gear oil for extended protection and a longer service life.
// Drilling_Depth
Drilling Depth Guide
Drilling depth (m) by auger diameter and soil hardness.
| VR-AG 1000 | Diameter (mm) | 150 | 200 | 250 | 300 |
|---|---|---|---|---|---|
| Drilling depth (m) | Soft | 3.5 | 3.0 | 2.5 | 2.5 |
| Drilling depth (m) | Medium | 3.5 | 3.0 | 2.4 | 2.4 |
| Drilling depth (m) | Hard | 3.0 | 3.0 | 2.2 | 2.2 |
| VR-AG 2000 | Diameter (mm) | 150 | 200 | 250 | 300 | 350 | 400 |
|---|---|---|---|---|---|---|---|
| Drilling depth (m) | Soft | 3.5 | 3.0 | 2.5 | 2.5 | 2.4 | 2.0 |
| Drilling depth (m) | Medium | 3.5 | 3.0 | 2.4 | 2.4 | 2.2 | 1.8 |
| Drilling depth (m) | Hard | 3.0 | 3.0 | 2.2 | 2.2 | 2.0 | 1.5 |
| VR-AG 3000 | Diameter (mm) | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 |
|---|---|---|---|---|---|---|---|---|---|
| Drilling depth (m) | Soft | 3.5 | 3.0 | 2.5 | 2.5 | 2.4 | 2.0 | 1.7 | 1.5 |
| Drilling depth (m) | Medium | 3.5 | 3.0 | 2.4 | 2.4 | 2.2 | 1.8 | 1.6 | 1.4 |
| Drilling depth (m) | Hard | 3.0 | 3.0 | 2.2 | 2.2 | 2.0 | 1.5 | 1.5 | 1.3 |
| VR-AG 5000 | Diameter (mm) | 150–600 | 650 | 700 | 750 | 800 | 850 | 900 |
|---|---|---|---|---|---|---|---|---|
| Drilling depth (m) | Soft | 4.5 | 3.2 | 3.0 | 2.6 | 2.0 | 1.7 | 1.5 |
| Drilling depth (m) | Medium | 4.2 | 3.7 | 2.8 | 2.4 | 1.8 | 1.6 | 1.3 |
| Drilling depth (m) | Hard | 3.5 | 3.3 | 2.5 | 2.1 | 1.7 | 1.4 | 1.2 |
| VR-AG 8000 | Diameter (mm) | 150–500 | 550 | 600 | 650 | 700 | 750 | 800 | 850 | 900 |
|---|---|---|---|---|---|---|---|---|---|---|
| Drilling depth (m) | Soft | 6.5 | 4.5 | 4.0 | 4.0 | 4.0 | 3.6 | 3.0 | 2.6 | 2.5 |
| Drilling depth (m) | Medium | 5.5 | 4.5 | 3.7 | 3.7 | 3.7 | 3.5 | 2.8 | 2.7 | 2.2 |
| Drilling depth (m) | Hard | 5.0 | 3.5 | 3.5 | 3.5 | 3.2 | 3.0 | 2.4 | 2.4 | 2.0 |
| VR-AG 10000 | Diameter (mm) | 150–500 | 550 | 600 | 650 | 700 | 750 | 800 | 850 | 900 | 1000 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Drilling depth (m) | Soft | 6.5 | 4.5 | 4.0 | 4.0 | 4.0 | 3.6 | 3.0 | 2.6 | 2.5 | 2.3 |
| Drilling depth (m) | Medium | 5.5 | 4.5 | 3.7 | 3.7 | 3.7 | 3.5 | 2.8 | 2.7 | 2.2 | 1.9 |
| Drilling depth (m) | Hard | 5.0 | 3.5 | 3.5 | 3.5 | 3.2 | 3.0 | 2.4 | 2.4 | 2.0 | 1.5 |
| VR-AG 18000 | Diameter (mm) | 150–400 | 500 | 600 | 650 | 700 | 750 | 800 | 850 | 900 | 950 | 1000 | 1100 | 1200 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Drilling depth (m) | Soft | 8.6 | 7.2 | 7.1 | 7.0 | 6.5 | 6.1 | 6.0 | 5.7 | 5.5 | 5.3 | 5.0 | 4.7 | 4.5 |
| Drilling depth (m) | Medium | 7.6 | 6.4 | 6.4 | 6.2 | 5.8 | 5.4 | 5.3 | 5.2 | 5.0 | 4.6 | 4.5 | 4.2 | 4.0 |
| Drilling depth (m) | Hard | 7.0 | 5.8 | 5.7 | 5.5 | 5.4 | 5.0 | 4.8 | 4.6 | 4.6 | 4.3 | 4.2 | 4.0 | 3.7 |
| VR-AG 30000 | Diameter (mm) | 150–400 | 450 | 500 | 550 | 600 | 650 | 700 | 800 | 900 | 1000 | 1100 | 1200 | 1500 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Drilling depth (m) | Soft | 9.0 | 8.6 | 8.6 | 8.6 | 8.6 | 8.4 | 8.0 | 7.6 | 7.0 | 6.5 | 6.3 | 6.0 | 5.0 |
| Drilling depth (m) | Medium | 8.2 | 7.7 | 7.7 | 7.7 | 7.7 | 7.5 | 7.3 | 6.8 | 6.3 | 6.0 | 5.7 | 5.5 | 4.6 |
| Drilling depth (m) | Hard | 7.3 | 7.0 | 7.0 | 7.0 | 7.0 | 6.8 | 6.6 | 6.2 | 5.7 | 5.3 | 5.0 | 4.8 | 4.0 |
| VR-AG 50000 | Diameter (mm) | 300–450 | 500 | 550 | 600 | 650 | 700 | 800 | 900 | 1000 | 1100 | 1200 | 1500 | 1800 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Drilling depth (m) | Soft | 12 | 12 | 11 | 11 | 11 | 10 | 9 | 9 | 8 | 8 | 7 | 6 | 4 |
| Drilling depth (m) | Medium | 11 | 11 | 10 | 10 | 10 | 9 | 7 | 7 | 6 | 6 | 5 | 5 | 3.3 |
| Drilling depth (m) | Hard | 8 | 8 | 7 | 7 | 7 | 7 | 6 | 6 | 5 | 5 | 5 | 4 | 2.5 |
| VR-AG 80000 | Diameter (mm) | 300–600 | 700 | 800 | 900 | 1000 | 1100 | 1200 | 1500 | 1800 | 2000 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Drilling depth (m) | Soft | 15 | 14 | 14 | 14 | 12 | 12 | 10 | 8 | 8 | 7 |
| Drilling depth (m) | Medium | 11 | 10 | 10 | 10 | 9 | 9 | 8 | 7 | 7 | 6 |
| Drilling depth (m) | Hard | 8 | 7 | 7 | 7 | 7 | 7 | 6 | 6 | 6 | 5 |
| VR-AG 110000 | Diameter (mm) | 450–600 | 700 | 800 | 900 | 1000 | 1100 | 1200 | 1500 | 1800 | 2000 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Drilling depth (m) | Soft | 19 | 18 | 18 | 18 | 16 | 16 | 14 | 12 | 12 | 11 |
| Drilling depth (m) | Medium | 14 | 13 | 13 | 13 | 13 | 13 | 11 | 10 | 10 | 9 |
| Drilling depth (m) | Hard | 10 | 9 | 9 | 9 | 9 | 9 | 8 | 8 | 8 | 7 |
| VR-AG 130000 | Diameter (mm) | 450–600 | 700 | 800 | 900 | 1000 | 1100 | 1200 | 1500 | 1800 | 2000 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Drilling depth (m) | Soft | 22 | 21 | 21 | 21 | 19 | 19 | 17 | 15 | 15 | 14 |
| Drilling depth (m) | Medium | 16 | 15 | 15 | 15 | 15 | 15 | 13 | 12 | 12 | 11 |
| Drilling depth (m) | Hard | 11 | 10 | 10 | 10 | 10 | 10 | 9 | 9 | 9 | 8 |
| VR-AG 180000 | Diameter (mm) | 450–600 | 700 | 800 | 900 | 1000 | 1100 | 1200 | 1500 | 1800 | 2000 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Drilling depth (m) | Soft | 27 | 26 | 26 | 26 | 24 | 24 | 22 | 20 | 20 | 19 |
| Drilling depth (m) | Medium | 20 | 19 | 19 | 19 | 19 | 19 | 17 | 16 | 16 | 15 |
| Drilling depth (m) | Hard | 14 | 13 | 13 | 13 | 13 | 13 | 12 | 12 | 12 | 11 |
// Related_Parts
Related Parts
Genuine VANROCK parts and accessories for auger drives — available through the dealer network.

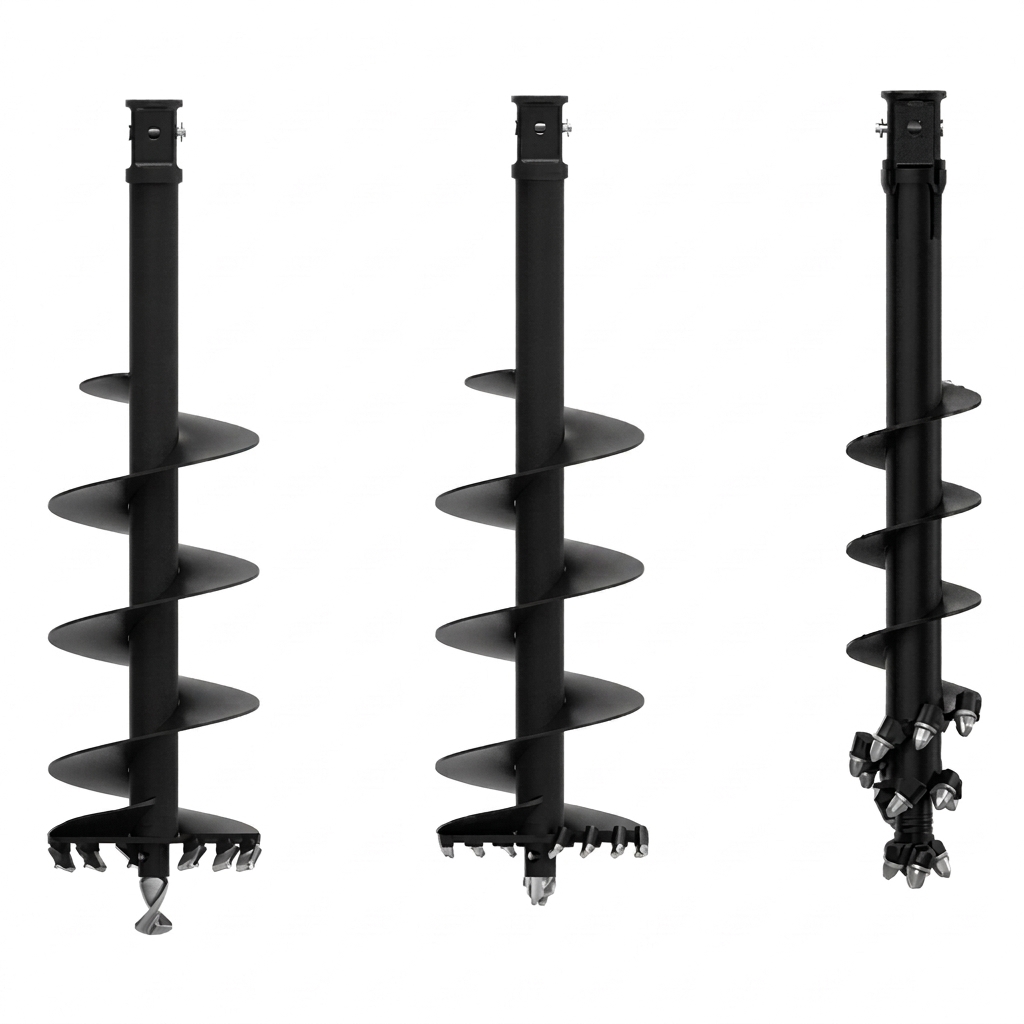

Augers

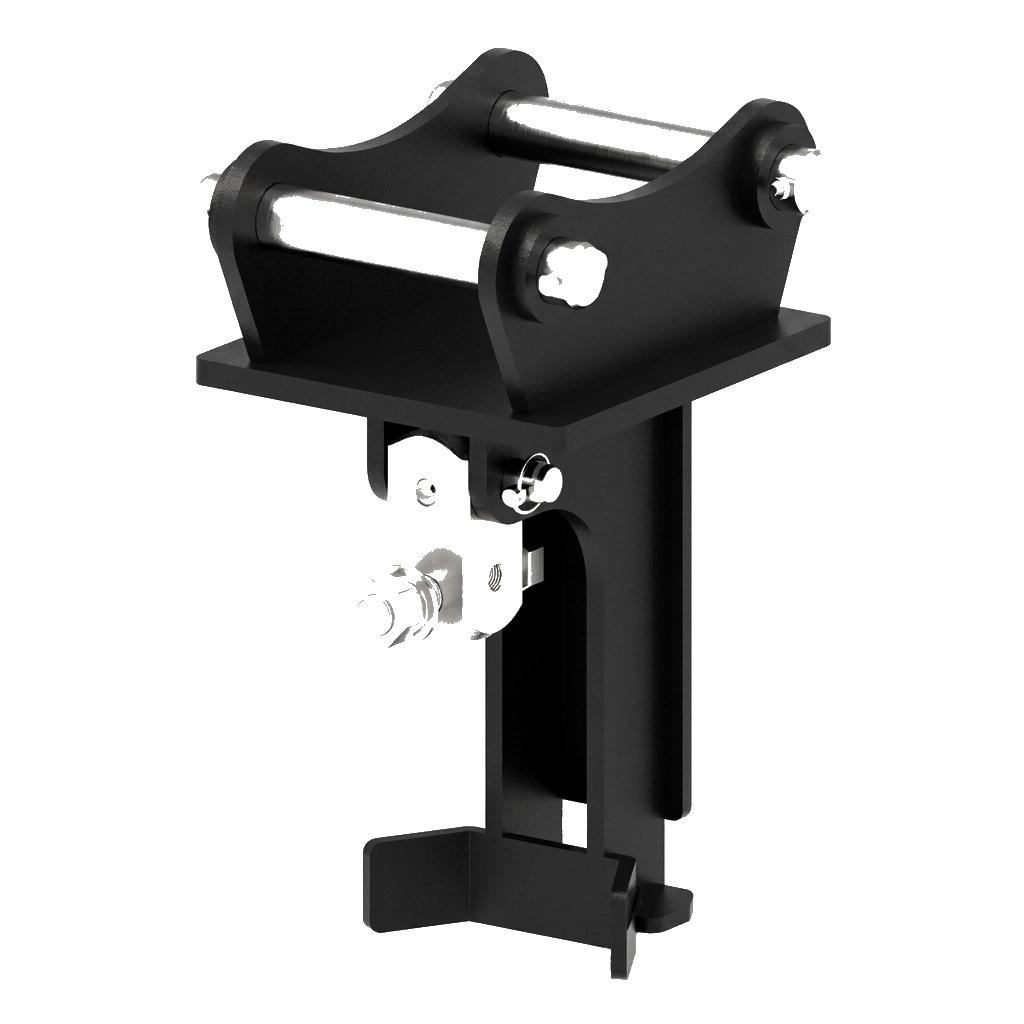

Hitch Options

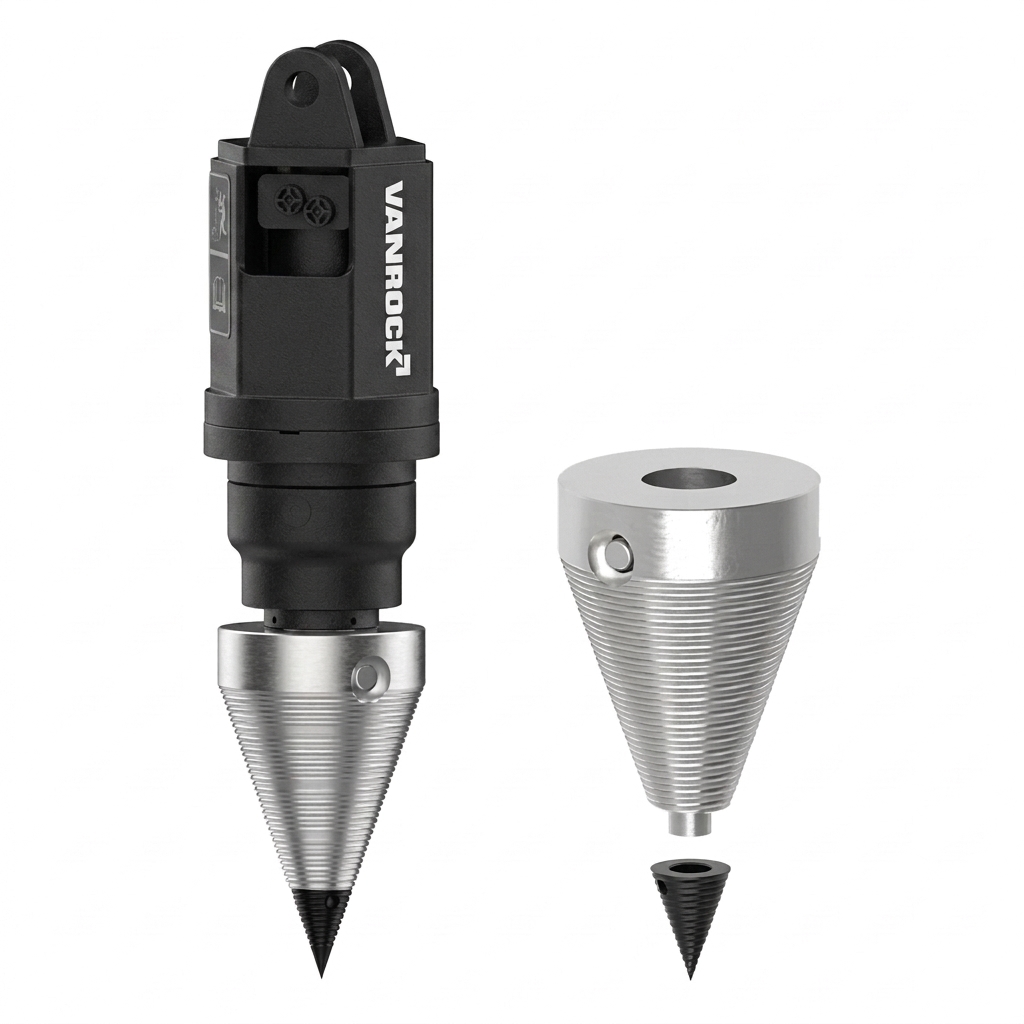

Log Splitter

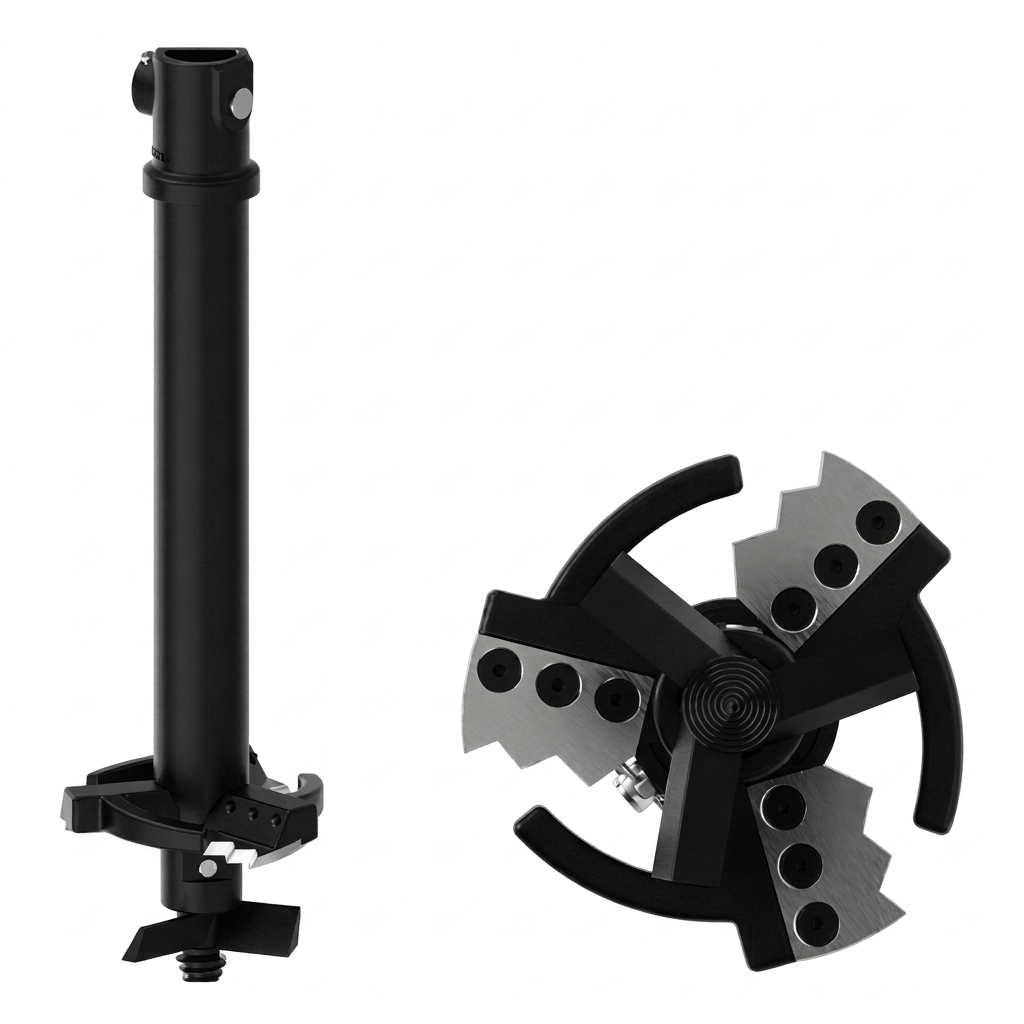

Stump Planner

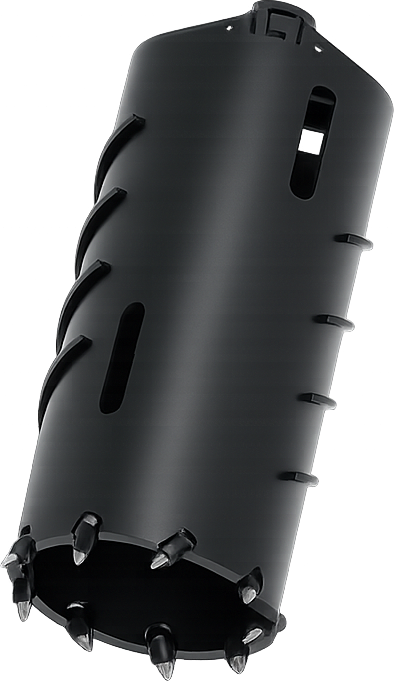

Core Barrel

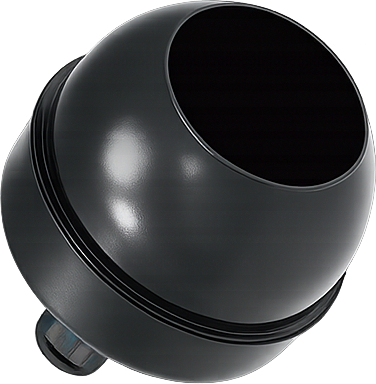

Cement Mixer Bowl

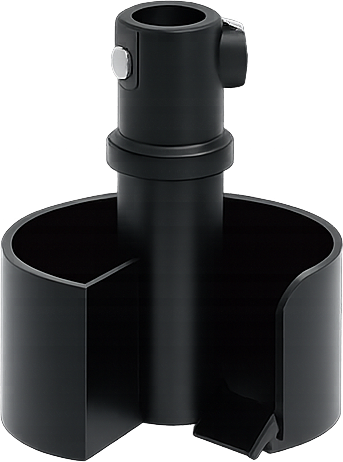

Hole Cleaner

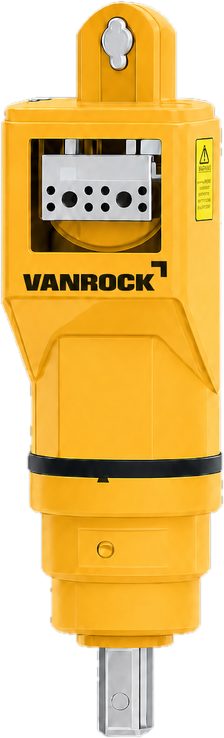

High Speed Auger Drive

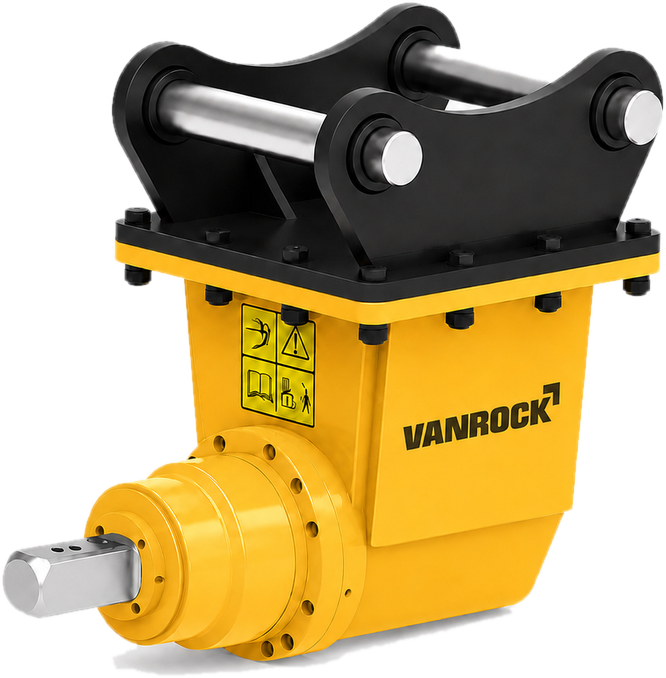

Horizontal Drill Auger Drive
// Custom_Solutions
Can't find the ideal earth auger for your application?
We provide custom solutions to all our customers and offer earth augers that you can take advantage of.
